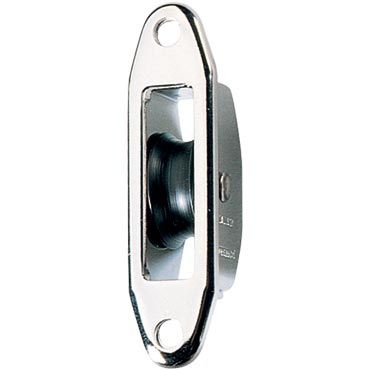

Ronstan Series 20 Stainless Steel Single Ball Bearing Exit Sheave Box
Ronstan series 20 exit block for masts and through deck applications. 2x 4mm fixing holes 48mm apart
Ronstan 20mm exit block with cover plate
Precision moulded Acetal sheaves running on stainless steel ball bearings provide high performance & low friction. They are typically used as lead blocks or to create powerful, efficient purchase systems.
Can be fitted with a shackle in either of two planes to allow correct alignment of the block. RORF1850S required to go through 3.5mm holes in loop head
Applications
- Dinghy control lines
- Dinghy vangs
- Cunninghams
- Traveller controls
Materials
- Stainless steel ball bearings
- UV stabilised Acetal sheave
- Grade 316 stainless body and cover
Features
- Low friction
- High static and dynamic load capacity
- Lightweight
- 2x 4mm fixing holes
- Fixing hole centres 48mm apart
SKU | RO-RF20711 |
---|---|
Weight | 22g |
Attachment Method | Surface Mount, Through Deck |
Bearing Type | Ball Bearing |
Block Type | Single |
Sheave Diameter (mm) | 20.00 |
Max Rope Width (mm) | 6.00 |
Max Working Load (kg) | 275 |
Breaking Load (kg) | 1000 |
Length (mm) | 59 |
