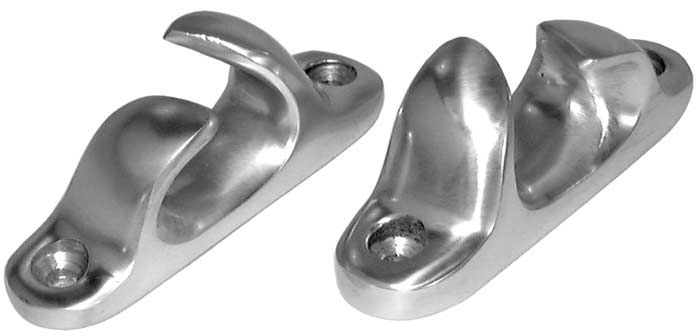

Pair of aluminium handed fairleads, 86mm long.
These fairleads are commonly used on the Wayfarer and other similar sized dinghies.
Dimensions
Measurement A |
86 mm |
 |
Measurement B |
31 mm |
Measurement C |
14.5 mm |
Measurement D |
67.5 mm |
Measurement E |
12.5 mm |
Measurement G |
M5 |
Weight |
0.15 Kg |
Specification
Material |
LM5 - Aluminium Magnesium Casting Alloy (AL Mg5) |
This Alloy Conforms with: |
UK BS1490 - LM5 Germany DIN 1725/5 - GM-ALMg5 |
Mechanical Properties |
Tensile stress - 170-280 N/mm2 |
Machinability |
LM5 machines very well and takes an excellent polish. |
Corrosion Resistance |
This alloy is highly resistant to corrosion and is superior to all other aluminium alloys for marine use. |
Application |
LM5 is used where very high resistance to corrosion from sea water or marine atmospheres is required. |
Anodising |
Anodised to 10 microns for added protection. |
