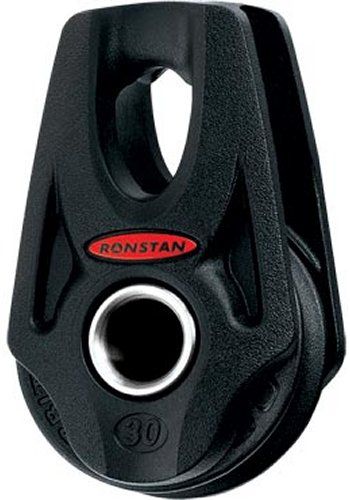

Ronstan Series 30 Orbit Single Lashing Head With Becket Option
Ronstan 30mm Ball bearing block with lashing head, with the optional becket.
Will accept the Ronstan wide dee shackle or Dynema link
Ronstan 30mm ball bearing Orbit block with lashing head, with the option to add the Ronstan wide dee shackle (RORF1850S-2) in either orientation to create a conventional loop top block. The block also has an ultra low profile becket thanks to the through-sheave design.
Ball bearing Orbit blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options.
Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fibre-reinforced composites in the block head, cleat arms and beckets.
- Highest working load in its class
- Secure, versatile and secure attachement
- Low profile and compact
- Shackle head (standard) or add Dyneema link by ordering RORF9003-07 Dyneema Link to suit S30 BB double and triple Orbit Blocks
- Becket takes upto 6mm line, add a Dyneema Link for large ropes
- Self-lubricating Acetal sheave and full contact bearing for high dynamic loads
- Sheave: High compression strength carbon black Acetal
- Ball Bearings: High compression strength Acetal
- Frame/Cheeks: Toughened, glass fibre reinforced Nylon
- Mainsheet systems and spinnaker sheets on dinghies to 5m (16ft)
- Halyard, Vang, Cunningham and backstay applications on boats to 5m (16ft)
- Control line applications on larger boats
Kilogram for kilogram of working load BB Orbit Blocks™ are the world’s lightest. To gain peak performance, we engineered out the heavy steel load straps, head post, shackle and cleating accessories. Through extensive research and development, we replaced virtually all metal components with high-tech polymers and fibre equivalents.
Weight and bulk are further reduced in the different block configurations. The ball bearing single and becket block has a through-sheave becket arrangement. The result? The lowest weight possible.
Highest working load in its class
The proven Ronstan 2-stage bearing system (Series 30 and larger) features high compression grade Acetal ball bearings and a secondary full-contact bearing. This gives minimum friction across the full working load range.
The sheave and bearing system is supported by a fibre-reinforced load frame, computer modelled and optimised using advanced stress analysis methods. The Dyneema® Link is produced from high spec SK75 fibre, which is 10 times stronger and lighter than steel, and provides the final connection from the block to the load point.
Simple, versatile and secure attachment
The single block is easily lashed to an attachment point, and can also accept Dyneema® Links and shackles for a variety of efficient attachment alternatives. The Dyneema® Link used in multi-sheave blocks is easily fitted and secured by a removable pin. The Dyneema® Link can also be removed and replaced by a shackle, custom lashing or strop.
These blocks are far more compatible with Dyneema®/Spectra® lines, carbon laminate connection points and webbing than traditional blocks with steel loop tops or shackles.
Low profile and compact
The two way head in the single lashing block allows for alignment at 0° or 90° orientation, while the single swivel block allows for full articulation.
The flexible Dyneema® Link used in multi-sheave blocks provides 0° or 90° orientation. It connects directly to the head of the block rather than to an intermediate head post. This reduces weight and gives the lowest possible profile while allowing full articulation.
Beckets have been carefully designed to minimise height.
|Attachment Method||Fixed Head, Rope, Shackle|
|Bearing Type||Ball Bearing|
|Block Options||Becket Through Axle|
|Sheave Diameter (mm)||30.00|
|Max Rope Width (mm)||8.00|
|Max Working Load (kg)||300|
|Breaking Load (kg)||600|
|Country of Origin||ID|
