Trident Vario 2 EU Road Base
Description

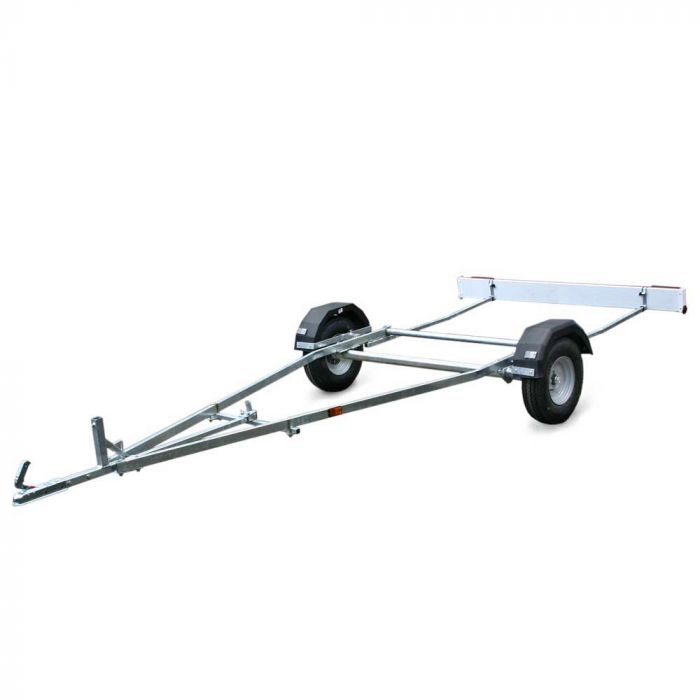

This is our new EC compliant Vario 2 road base trailer, designed with over 15 years of experience for carrying dinghy with their trolleys. The road base is suitable for boats up to 5m (16ft 6ins), just roll on your boat with its trolley.
The trailer includes;
• Mast Support bracket, just add a mast support at a size to suit your towing vehicle
• 10 inch road wheels
• Brackets for lighting board
• Lighting board with 6m cable
• Full width rear roller - to make it easier to pull on your boat and trolley
• Adjustable front round locating pin to hold trolley in place
• Tie down anchor points (front and back)
• As standard will take our 115/Mirror to 165 trolleys (excluding our heavy duty trollies)
• Pre drilled to take a jockey wheel, which can be added at time of purchase or later.
• Supplied flat packed so we can easily ship the item
• All tools are included for assembly, which is now quicker and easier.
Important Dimensions
Please note that although our trailers are designed with the intention of been universal, there are many different trolley designs for different types of boats. We suggest that you check to make sure your trolley fits on the road base before purchasing. Normally the important parts are the length of the axle and the position of the trolley wheels. If you have any questions please email or call us. Alternatively why not buy one of our trolleys for a guaranteed great fit.
| Distance between the mud guards | 1530mm | If the outside of your trolley wheels are further apart, your trolley will still fit but you will need to remove the trolley wheels. |
|---|---|---|
| Width of the trailer frame | 1245mm | If the inside of your trolley wheels are closer, then you will need to remove the trolley wheels when you put the boat on the trailer. |
| Width of the roller | 1190mm | The distance from the outside of your side arms where they join the axle of your trolley need to be less, otherwise the trolley won't fit. |
| Locating pin to roller | 2820mm | This is the maximum distance the locating pin can be set from the aft of the roller |
Trailer Dimensions and Capacity
| Unladen Trailer Weight | 76Kg | Includes 1.1m mast support and excludes launching trolley. |
|---|---|---|
| Gross Trailer Weight | 400Kg | Maximum Total weight of trailer including load. |
| Maximum Payload | 324Kg | This is the maximum load that can be carried by the trailer, don't forget to include your trolley into this weight. |
| Width | 1920mm | Maximum width of the trailer (this is at the mudguards) |
| Length (with out lighting board) | 3570mm | Length of trailer with lighting board and brackets removed |
| Length (with lighting board) | 4770mm | Length of trailer with lighting board and brackets fitted. |
| SKU | TRTRAVRB2 |
|---|
